Baader 3.5 / 4nm Ultra-Narrowband-Filterset 36mm – CMOS-optimized (H-alpha / O-III / S-II)

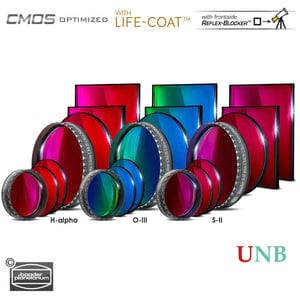

Product image 1
1 / 34

Baader 3.5 / 4nm Ultra-Narrowband-Filterset 36mm – CMOS-optimized (H-alpha / O-III / S-II)

Highlights

  • 36 mm x 2 mm Baader CMOS H-alpha / O-III / S-II Ultra-Narrowband Filter Set – Premium Grade
  • 3.5 / 4 nm FWHM (to harmonize the exposure time from H-alpha with O-III / S-II), recommended for optical systems from > f/3.4
  • For highest contrast even at strongest light pollution, minimizes star size, emphasizes finest nebula detail – indispensable under Bortle 9/8/7/(6) skies
  • Reflex-Blocker™ hard coated and Plane-optically polished – with sealed coating edges (Life-Coat™)
  • Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
  • Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies

Description

This new generation of Baader CMOS-filters features:

CMOS-optimized Baader Filters



  • Increased contrast
  • Ever more narrow band-passes
  • Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
  • FWHM on each filter category carefully designed to allow for 1:1:1 exposures,

    matched for typical CMOS quantum efficiency and s/n ratio
  • Identical filter thickness to existing standards, with utmost care for remaining Par focal
  • Blackened edges all around, with filter-lead-side-indicator in the form of a black front side outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
  • Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
  • Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment

    •

    Specifications

    Additional Information

    Manufacturer Baader Planetarium
    SKU (#) 2961672
    EAN Code 4047825104052
    Net weight (kg) 0.19
    Suitable for f/ratio > f/3.4
    Transmission Range H-alpha / O-III / S-II
    Filter Thickness (without cell) 2 mm
    HBW (Half bandwidth) 3.5 nm (H-alpha) / 4 nm (O-III / S-II)

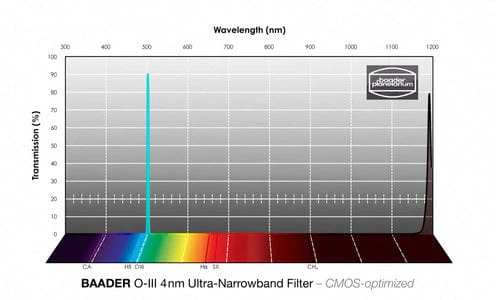

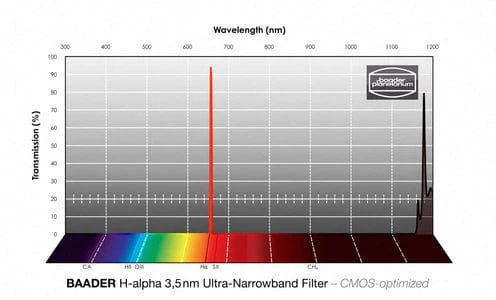

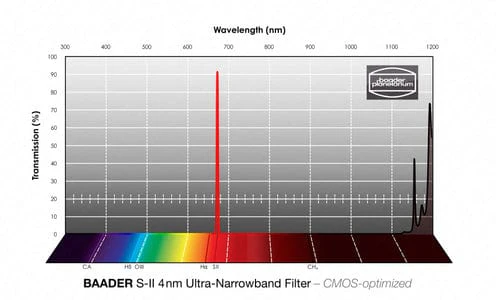

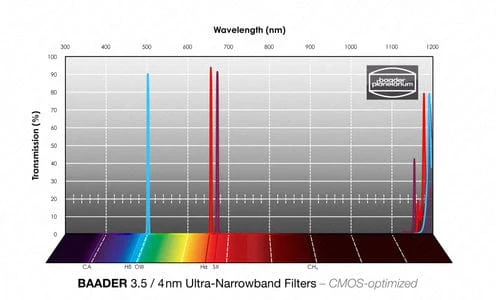

    CWL (Central Wavelength) 656,3 nm / 500,7 nm / 671,7 nm
    AR-Coating Reflex-Blocker™ hard coated, Plane-optically polished
    Special Features CMOS-optimized with Life-Coat™
    Filter size 36 mm
    Filter Usage CMOS, CCD, H-alpha, O-III, S-II
    Filter mounted Unmounted
    Type of Filter Ultra-Narrowband
    Single or Set? Filter-Set
    Filter shape round
    $359.10

    Original: $1,026.00

    -65%
    Baader 3.5 / 4nm Ultra-Narrowband-Filterset 36mm – CMOS-optimized (H-alpha / O-III / S-II)—

    $1,026.00

    $359.10

    Product Information

    Shipping & Returns

    Description

    Highlights

    • 36 mm x 2 mm Baader CMOS H-alpha / O-III / S-II Ultra-Narrowband Filter Set – Premium Grade
    • 3.5 / 4 nm FWHM (to harmonize the exposure time from H-alpha with O-III / S-II), recommended for optical systems from > f/3.4
    • For highest contrast even at strongest light pollution, minimizes star size, emphasizes finest nebula detail – indispensable under Bortle 9/8/7/(6) skies
    • Reflex-Blocker™ hard coated and Plane-optically polished – with sealed coating edges (Life-Coat™)
    • Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
    • Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies

    Description

    This new generation of Baader CMOS-filters features:

    CMOS-optimized Baader Filters



  • Increased contrast
  • Ever more narrow band-passes
  • Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
  • FWHM on each filter category carefully designed to allow for 1:1:1 exposures,

    matched for typical CMOS quantum efficiency and s/n ratio
  • Identical filter thickness to existing standards, with utmost care for remaining Par focal
  • Blackened edges all around, with filter-lead-side-indicator in the form of a black front side outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
  • Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
  • Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment

    •

    Specifications

    Additional Information

    Manufacturer Baader Planetarium
    SKU (#) 2961672
    EAN Code 4047825104052
    Net weight (kg) 0.19
    Suitable for f/ratio > f/3.4
    Transmission Range H-alpha / O-III / S-II
    Filter Thickness (without cell) 2 mm
    HBW (Half bandwidth) 3.5 nm (H-alpha) / 4 nm (O-III / S-II)
    CWL (Central Wavelength) 656,3 nm / 500,7 nm / 671,7 nm
    AR-Coating Reflex-Blocker™ hard coated, Plane-optically polished
    Special Features CMOS-optimized with Life-Coat™
    Filter size 36 mm
    Filter Usage CMOS, CCD, H-alpha, O-III, S-II
    Filter mounted Unmounted
    Type of Filter Ultra-Narrowband
    Single or Set? Filter-Set
    Filter shape round
