Baader 2" ClickLock S58 clamp with ring-dovetail (Baader Diamond Steeltrack) - 2956258
Highlights
Baader 2" Click-lock S58 clamp with ring-dovetail, suitable for all Baader Diamond Steeltrack (BDS) focusers
Replaces the supplied standard clamp

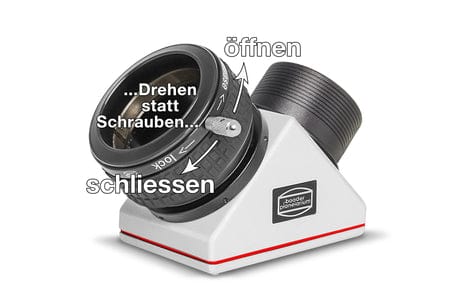

A small rotation by 20° with gentle fingertip pressure to the knurled lever is enough to securely clamp every 2" accessory.
Ratchet function – features acoustic and haptic display of the clamp-position. This way you can hear and feel in darkness without looking if the clamp is opened or closed.
Compression tension-ring of thick-walled hard bronze, keeps its shape even after many years of use and holds expensive accessories securely - without causing scratches or pressure points on your accessories.
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2956258 |
| Weight (kg) | 0.143 |
| Optical length (mm) | 30 mm |
| Clamping System | Click-lock |
| Usage | fast clamping of every 2" accessory |
| Inner Diameter / Clear Aperture (mm) | 50,8 (2") |
| Outer Diameter | 68 |
| Outer Connection (lens sided) | Dovetail ring, S58 |
| Inner Connection (eyepiece/-camera-sided) | Clamp, 2" (50,8mm) |
| Compatible Brands | Baader Planetarium |
| Type of Adapter | Click-lock, Eyepiece Clamp |
